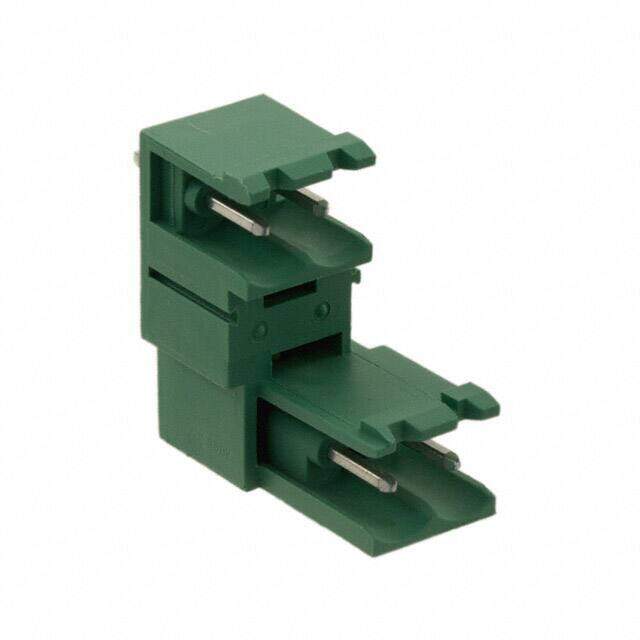

1763074 image
Favorite
1763074 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.87264
≥100 USD $1.75032
≥500 USD $1.610312
≥1000 USD $1.580163
Inventory: 772
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 25.6mm
Length 12.7mm
Height 23.7mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CSA; CUL; EAC; EN; GL; UL
Number of Ways 2
Positions Per Level 2
Voltage - IEC 400V
Number of Decks 2
Current 12A
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.870 22.10mm
Depth 23.7mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTBV
Published 2010
Packaging Bulk

Physical

Weight 162.000005g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
