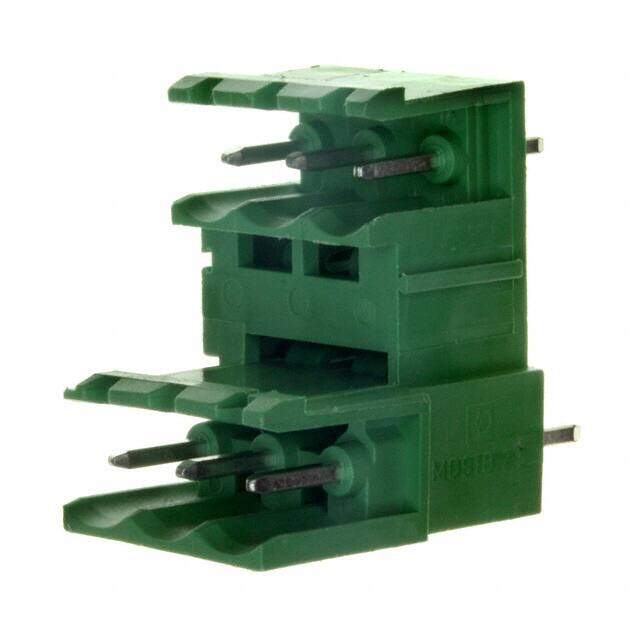

1763045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $2.76
Unit Price: USD $2.7632
≥1 USD $2.7632
≥10 USD $2.68664
≥100 USD $2.51064
≥500 USD $2.309824
≥1000 USD $2.266563
Inventory: 68
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.50003kg
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Orientation Straight
Depth 23.7mm
Insulation Height 0.870 22.10mm
Reach Compliance Code unknown
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 10A
Number of Levels 2
Current 12A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 3
Dimensions
Height 23.7mm
Length 17.5mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
