1763032
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

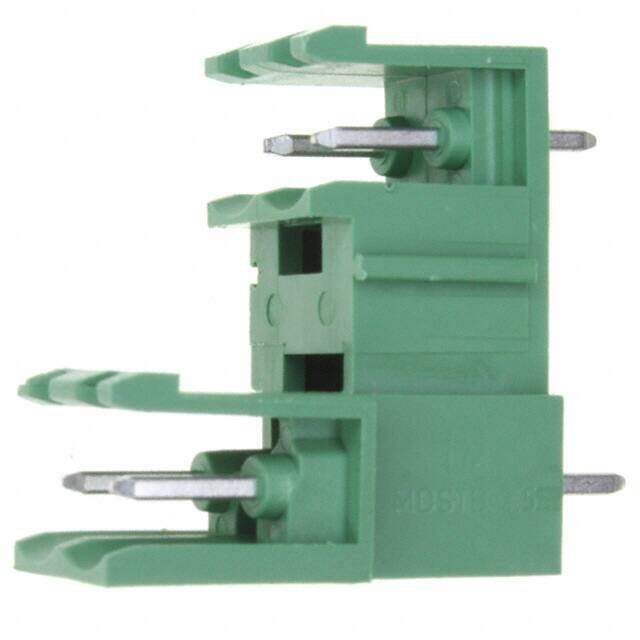

TERM BLOCK HDR 4POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.87264
≥100 USD $1.75032
≥500 USD $1.610312
≥1000 USD $1.580163
Inventory: 172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26mm
Length 12.5mm
Height 23.7mm
Technical
Header Orientation Vertical
Safety Approval UL; CSA; GL
Number of Ways 4
Positions Per Level 2
Voltage - IEC 400V
Number of Decks 2
Current 12A
Max Current Rating 10A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Reach Compliance Code unknown
Insulation Height 0.870 22.10mm
Depth 23.7mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTBV
Published 2011
Packaging Bulk
Physical
Weight 2.100133kg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
