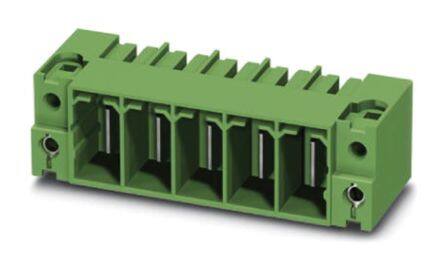

1762767
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Power PL 4 POS Solder RA Thru-Hole 12 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $19.18
Unit Price: USD $19.184
≥1 USD $19.184
≥10 USD $18.6604
≥100 USD $17.43984
≥500 USD $16.044688
≥1000 USD $14.823882
≥3000 USD $14.126323
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2010
Series COMBICON PC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Blade Pins, Shrouded (4 Side)
Color Green
Voltage - Rated 1kV
Pitch 0.591 15.00mm
Insulation Height 1.122 28.50mm
Current Rating 125A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.181 4.60mm
Number of Levels 1
Current 115A
Voltage - UL 600V
Header Orientation 90°, Right Angle
Current - IEC 125A
Number of Positions Per Level 4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
