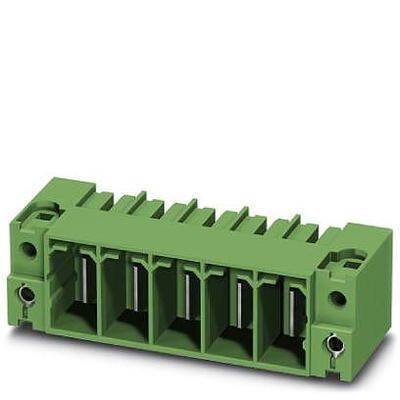

1762741
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON PC RoHS Compliant 2010 Not Applicable Terminal Block Header, Blade Pins, Shrouded (4 Side) UL94V-0 90° Right Angle 115A 600V
PDF
/
Buying Options
Total Price: USD $152.6
Unit Price: USD $15.26
≥10 USD $15.26
Inventory: 50
Minimum: 10
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 54.4mm
Length 33.1mm
Height 38mm
Technical
Number of Positions Per Level 2
Current - IEC 125A
Header Orientation 90°, Right Angle
Voltage - UL 600V
Current 115A
Number of Levels 1
ELV Compliant
Contact Tail Length 0.181 4.60mm
Voltage 600V
Housing Color Natural
Termination Style Solder
Current Rating 125A
Insulation Height 1.122 28.50mm
Pitch 0.591 15.00mm
HTS Code 8536.69.40.40
Voltage - Rated 1kV
Gender Male
Color Green
Type Header, Blade Pins, Shrouded (4 Side)
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON PC
Published 2010
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 4 Weeks
