1762648
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

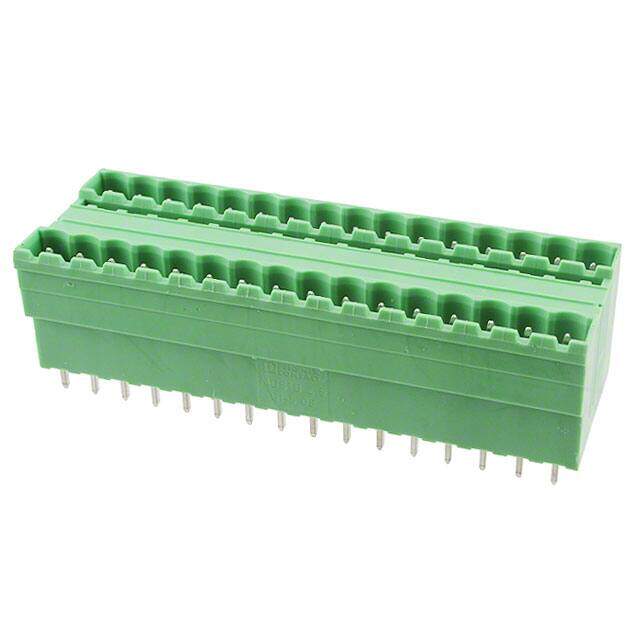

COMBICON MDSTBV RoHS Compliant 2011 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) UL94V-0 Vertical 12A 300V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 16
Positions Per Level 16
Voltage - IEC 630V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.866 22.00mm
Depth 28.5mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 32
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTBV
Published 2011
Packaging Bulk
Physical
Weight 161.000004g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
