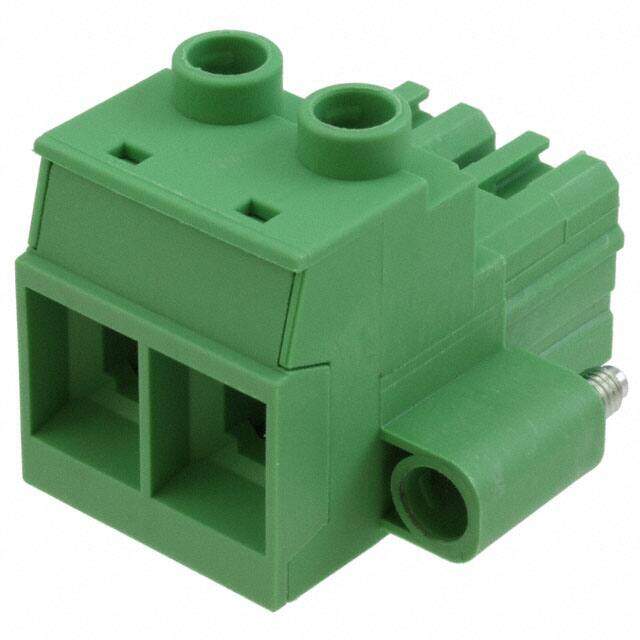

1762592
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 15mm pitch Plug 20-2 AWG Screw
PDF
/
Buying Options
Total Price: USD $15.14
Unit Price: USD $15.136
≥1 USD $15.136
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON PC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Blade Sockets
Color Green
Gender Female
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.591 15.00mm
Depth 40mm
Insulation Height 1.575 40.00mm
Current Rating 125A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 1kV
Voltage 1kV
Number of Levels 1
Current 125A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 2 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Wire Gauge or Range - AWG 2-16 AWG
Current - UL 115A
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-35mm2
Wire Strip Length 20mm
Number of Positions Per Level 2
Screw Size M5
Dimensions
Height 52mm
Length 40mm
Width 54.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
