1762541
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

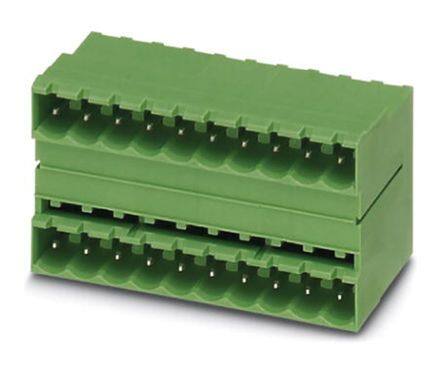

PA 94V-0 Terminal Block Header
PDF
/
Buying Options
Total Price: USD $7.96
Unit Price: USD $7.961935
≥1 USD $7.961935
≥10 USD $7.511262
≥100 USD $7.086096
≥500 USD $6.684995
≥1000 USD $6.306596
Inventory: 2426
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 161.000004g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Depth 28.5mm
Insulation Height 0.866 22.00mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 10A
Number of Levels 2
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
