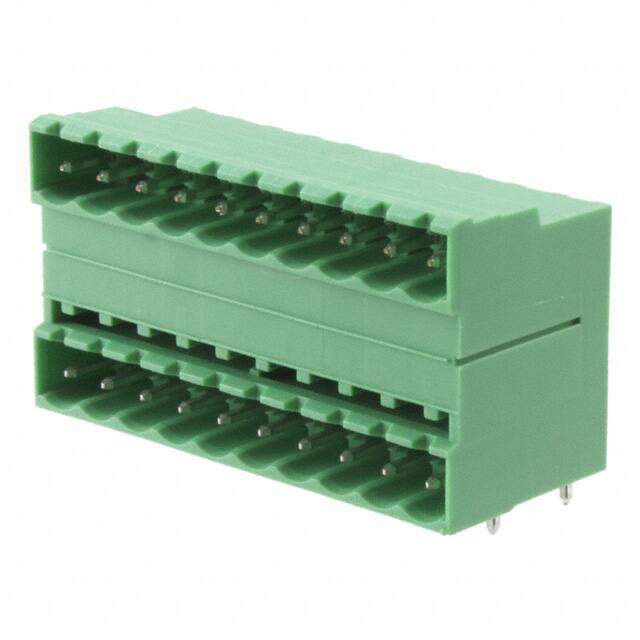

1762457 image
Favorite
1762457 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block; Header; Male Pins; (4 Side); 20 Pos; 0.200" (5.08mm) pitch; 15A; 300
PDF
/
Buying Options
Total Price: USD $10.96
Unit Price: USD $10.956
≥1 USD $10.956
≥10 USD $10.6612
≥100 USD $9.96336
≥500 USD $9.166344
≥1000 USD $8.994691
Inventory: 110
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 52.36mm
Length 52.8mm
Height 28.7mm

Technical

Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Positions Per Level 10
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 1.122 28.50mm
Depth 22mm
Orientation Right Angle
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTB
Published 2010
Packaging Bulk

Physical

Weight 161.000004g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin

Supply Chain

Factory Lead Time 4 Weeks
