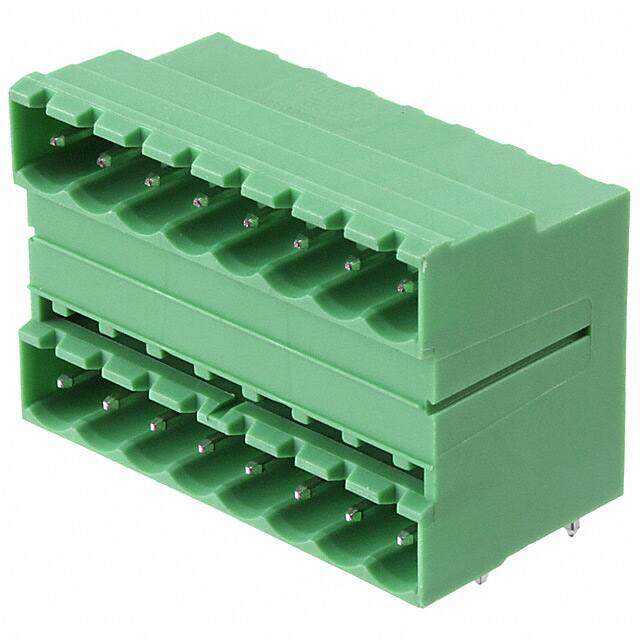

1762431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 16POS 5.08MM
PDF
/
Buying Options
Total Price: USD $8.7
Unit Price: USD $8.7032
≥1 USD $8.7032
≥10 USD $8.4656
≥100 USD $7.91208
≥500 USD $7.279096
≥1000 USD $7.142854
Inventory: 272
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 161.000004g
Technical
Packaging Bulk
Published 2003
Series COMBICON MDSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Color Green
Number of Rows 2
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 22mm
Insulation Height 1.122 28.50mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 2
Voltage - IEC 630V
Positions Per Level 8
Number of Ways 8
Safety Approval CSA; UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Dimensions
Height 32mm
Length 42.64mm
Width 42.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
