1762208
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

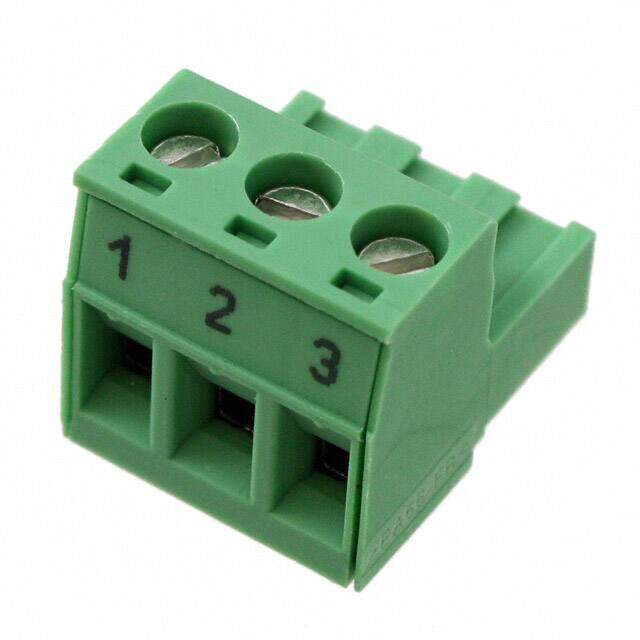

TERM BLOCK PLUG 3POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.0768
≥1 USD $2.0768
Inventory: 792
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 5.399989g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTB
Feature Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL; VDE; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Number of Positions Per Level 3
Screw Size M3
Stripping Length 7mm
Dimensions
Height 15.24mm
Length 15mm
Width 10.16mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
