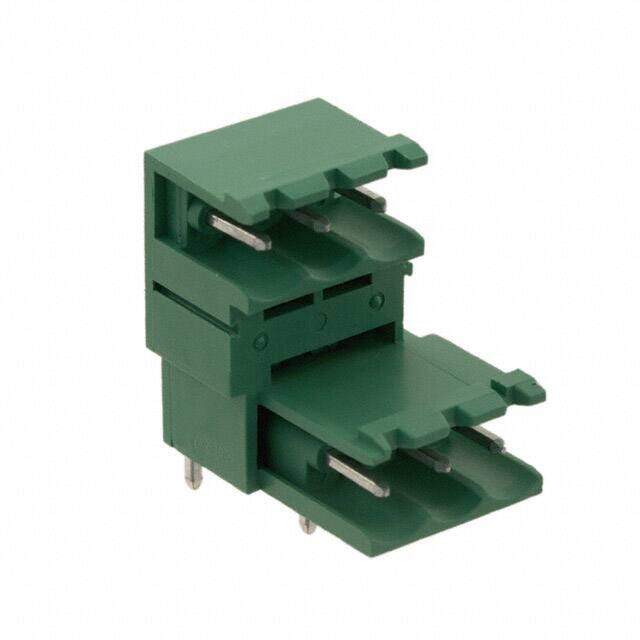

1762075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.76
Unit Price: USD $2.7632
≥1 USD $2.7632
≥10 USD $2.68664
≥100 USD $2.51064
≥500 USD $2.309824
≥1000 USD $2.266563
Inventory: 2698
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26.9mm
Length 17.78mm
Height 22.1mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; EAC; GL
Number of Ways 3
Voltage - IEC 400V
Number of Decks 2
Current 15A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.126 3.20mm
Voltage 300V
Number of Contacts 12
Approval Agency CSA, UL
Termination Style Solder
Current Rating 10A
Insulation Height 0.933 23.70mm
Depth 22.1mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated DC 508mV
Additional Feature UL 94V-0, PBT, SAFETY APPROVAL: UL; VDE
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MDSTB
Published 2005
Packaging Bulk
Physical
Weight 158g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
