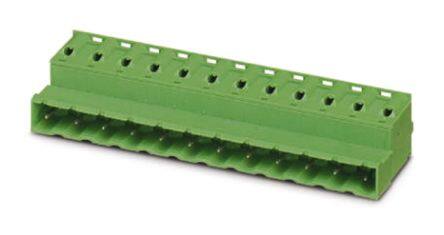

1761629
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks GFKIC 2.5/ 4-ST-7.62
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.23548
≥1 USD $4.23548
≥10 USD $3.995735
≥100 USD $3.76956
≥500 USD $3.556199
≥1000 USD $3.354906
Inventory: 8639
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Number of Positions Per Level 4
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CUL; EAC; UL
Number of Ways 4
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON GFKIC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
