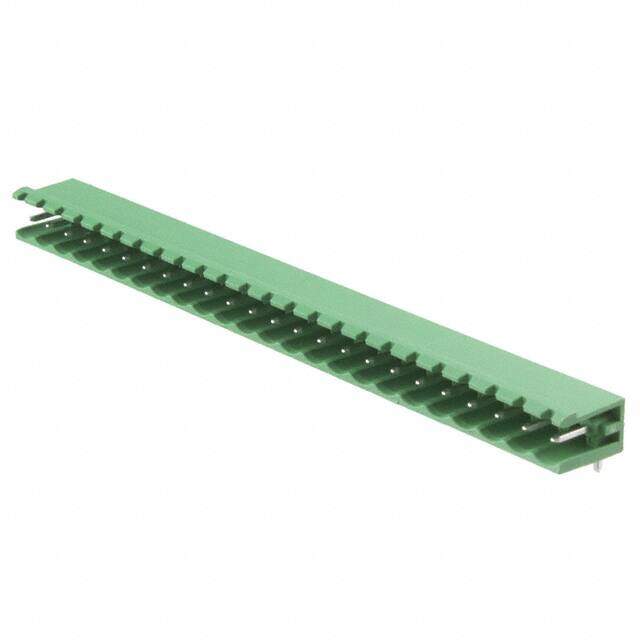

1759237 image
Favorite
1759237 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 24 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.053247
≥1 USD $8.053247
≥10 USD $7.597402
≥100 USD $7.167364
≥500 USD $6.761661
≥1000 USD $6.378924
Inventory: 9829
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Rated Voltage 250V
Fastening Method PLUG IN
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 24
Voltage - IEC 400V
Current - UL 15A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Termination Style Solder
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Number of Rows 1
Color Green
Number of Positions 24
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTB
Published 2012
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole

Supply Chain

Factory Lead Time 4 Weeks
