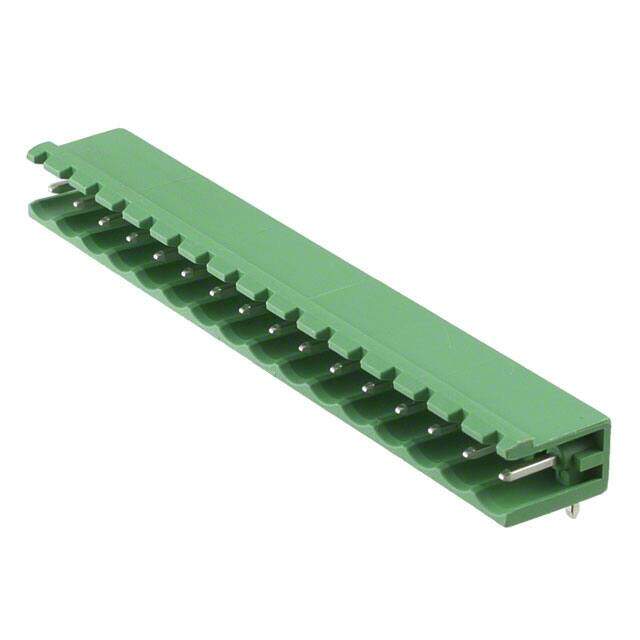

1759156
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 16 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.54
Unit Price: USD $6.540909
≥1 USD $6.540909
≥10 USD $6.170671
≥100 USD $5.821386
≥500 USD $5.491875
≥1000 USD $5.181016
Inventory: 2861
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 151.999994g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT; 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 16
Safety Approval CSA; UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 16
Dimensions
Height 12.1mm
Length 81.28mm
Width 81.28mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
