1759114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

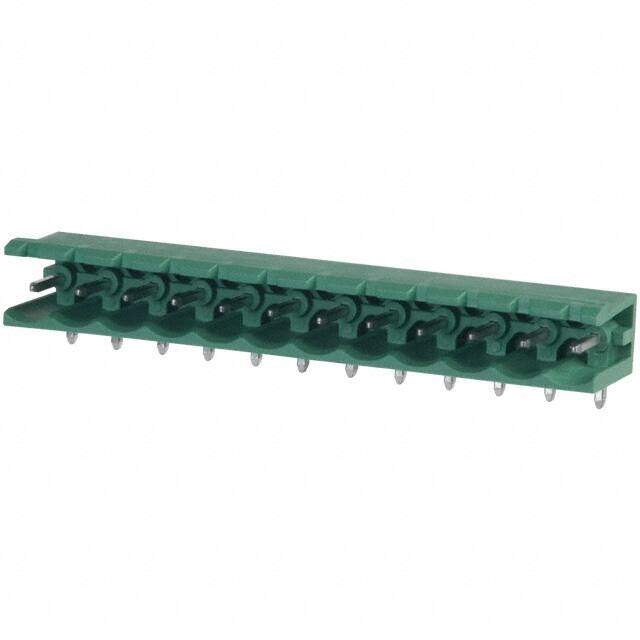

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.59
Unit Price: USD $2.5872
≥1 USD $2.5872
Inventory: 968
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 151.999994g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 12
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL :VDE
HTS Code 8536.69.40.40
Voltage - Rated DC 320V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, EN, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 12
Number of Decks 1
Voltage - IEC 400V
Number of Ways 12
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 40.64mm
Width 60.96mm
Thickness 55.88mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
