1759101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

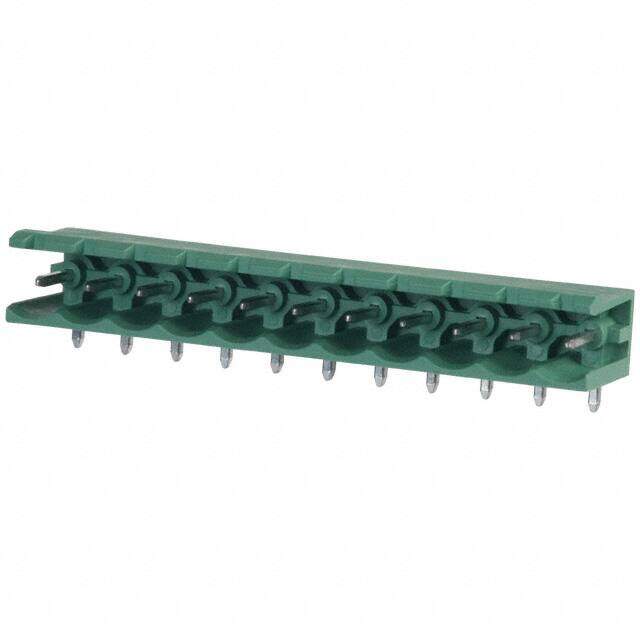

TERM BLOCK HDR 11POS 5.08MM
PDF
/
Buying Options
Total Price: USD $2.79
Unit Price: USD $2.7896
≥1 USD $2.7896
≥10 USD $2.71216
≥100 USD $2.5344
≥500 USD $2.331648
≥1000 USD $2.288
Inventory: 180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 151.999994g
Technical
Packaging Bulk
Published 2005
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 320V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, EN, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 11
Number of Decks 1
Voltage - IEC 400V
Number of Ways 11
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 55.88mm
Width 55.88mm
Thickness 50.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
