1759075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

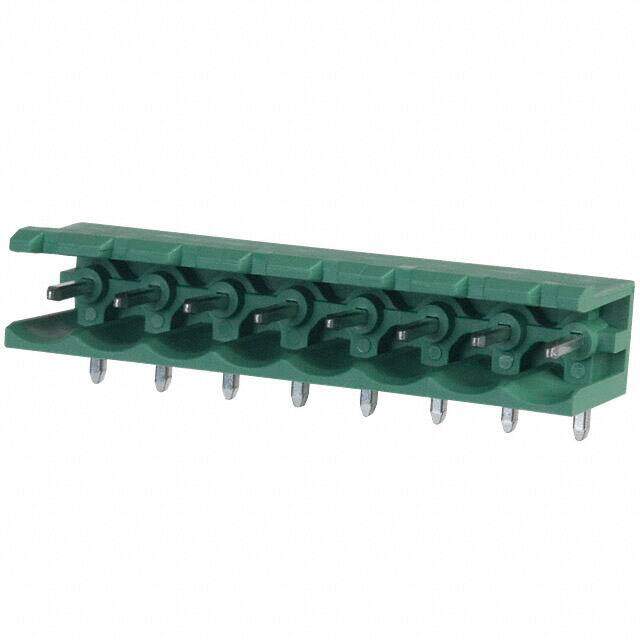

TERM BLOCK HDR 8POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.11
Unit Price: USD $2.112
≥1 USD $2.112
≥10 USD $2.02136
≥100 USD $1.966096
≥500 USD $1.83744
≥1000 USD $1.690445
≥3000 USD $1.6588
Inventory: 444
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 151.999994g
Technical
Packaging Bulk
Published 2003
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL :VDE
Voltage - Rated DC 320V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, EN, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 8
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 12.1mm
Length 45.68mm
Width 40.64mm
Thickness 35.56mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
