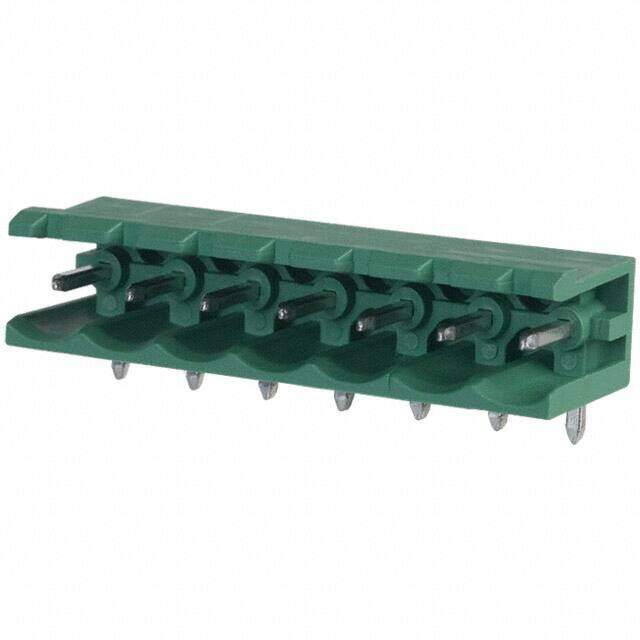

1759062 image
Favorite
1759062 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 7POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.8568
≥1 USD $1.8568
≥10 USD $1.7776
≥100 USD $1.728848
≥500 USD $1.61568
≥1000 USD $1.486426
≥3000 USD $1.4586
Inventory: 84
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 151.999994g

Technical

Packaging Bulk
Published 2003
Series COMBICON MSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, EN, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 7
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 7
Safety Approval UL
Header Orientation 90°, Right Angle

Dimensions

Height 12.1mm
Length 35.56mm
Width 35.56mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
