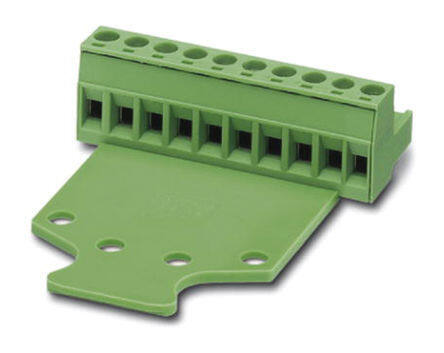

1758995
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $12.47
Unit Price: USD $12.469403
≥1 USD $12.469403
≥10 USD $11.763592
≥100 USD $11.097723
≥500 USD $10.469553
≥1000 USD $9.876932
Inventory: 8995
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 9
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Number of Contacts 9
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 9
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side), Strain Relief
Series COMBICON MSTB
Published 2010
Packaging Bulk
Physical
Weight 350.000009g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 5 Weeks
