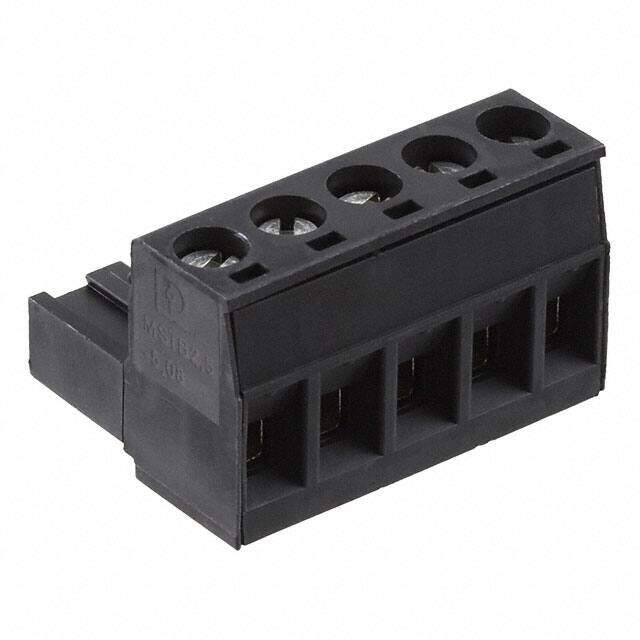

1758814
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
ACCESSORIES, MSTB 2,5/ 5-ST-5,08 BK
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.784
≥1 USD $3.784
≥10 USD $3.67752
≥100 USD $3.43728
≥500 USD $3.16228
≥1000 USD $3.103091
Inventory: 291
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Weight 8.789996g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Dimensions
Height 18.3mm
Length 15mm
Width 25.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
