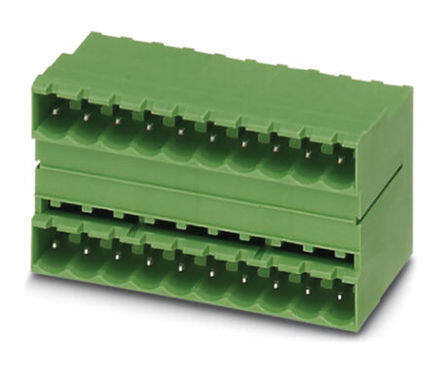

1758199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.73
Unit Price: USD $5.7288
≥1 USD $5.7288
≥10 USD $5.57656
≥100 USD $5.21136
≥500 USD $4.794504
≥1000 USD $4.704691
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 153.999996g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 20
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 20
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 101.6mm
Width 101.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
