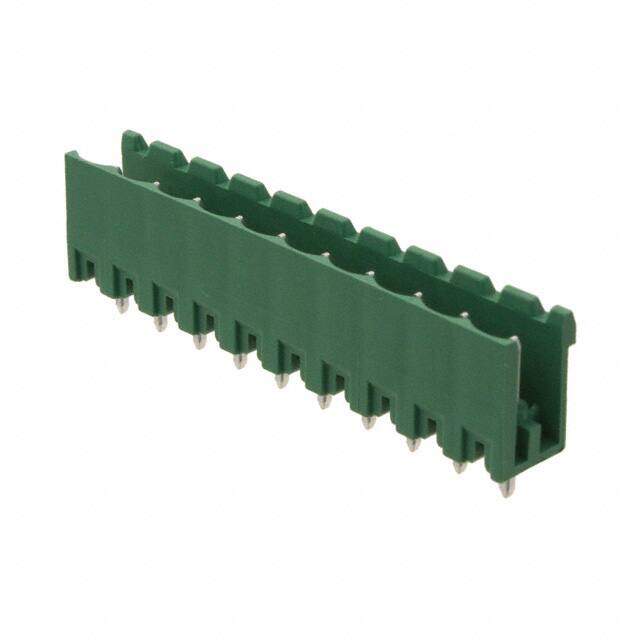

1758092 image
Favorite
1758092 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 10POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.52648
≥100 USD $2.457664
≥500 USD $2.2968
≥1000 USD $2.113056
≥3000 USD $2.073491
Inventory: 1101
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 50.8mm
Length 50.8mm
Height 15.9mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 10
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 10
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 250V
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2010
Packaging Bulk

Physical

Weight 153.999996g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin

Supply Chain

Factory Lead Time 7 Weeks
