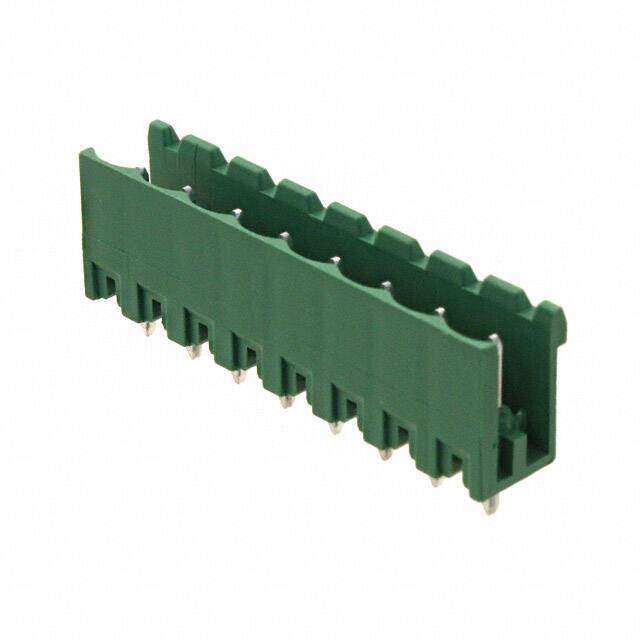

1758076 image
Favorite
1758076 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 8POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.11
Unit Price: USD $2.112
≥1 USD $2.112
≥10 USD $2.02136
≥100 USD $1.966096
≥500 USD $1.83744
≥1000 USD $1.690445
≥3000 USD $1.6588
Inventory: 1175
Minimum: 1
-
+

Technical Details

Technical

Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 8
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation Vertical
Wire Cross Section 2.5 mm2
Fastening Method CONNECTOR
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 250V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2003
Packaging Bulk

Dimensions

Height 15.9mm
Length 40.64mm
Width 40.64mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free

Physical

Weight 153.999996g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin

Supply Chain

Factory Lead Time 7 Weeks
