1758050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

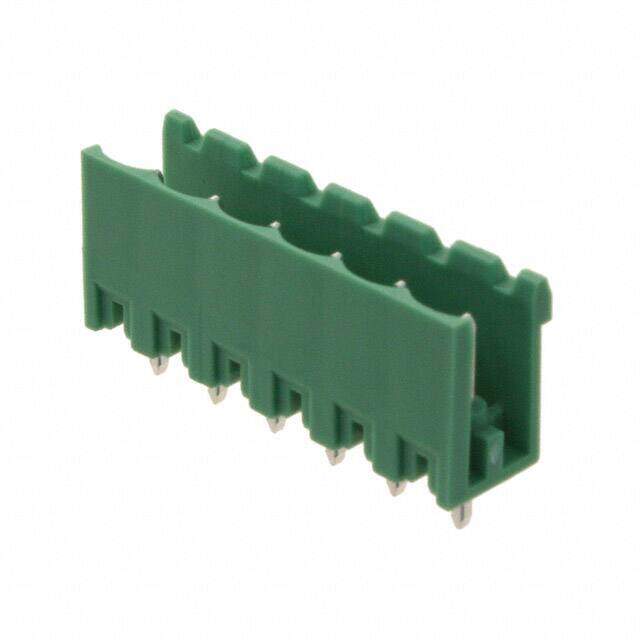

TERM BLOCK HDR 6POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.48984
≥100 USD $1.449184
≥500 USD $1.35432
≥1000 USD $1.245974
≥3000 USD $1.222654
Inventory: 819
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 153.999996g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Voltage - Rated DC 320V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 6
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 30.48mm
Width 30.48mm
Thickness 25.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
