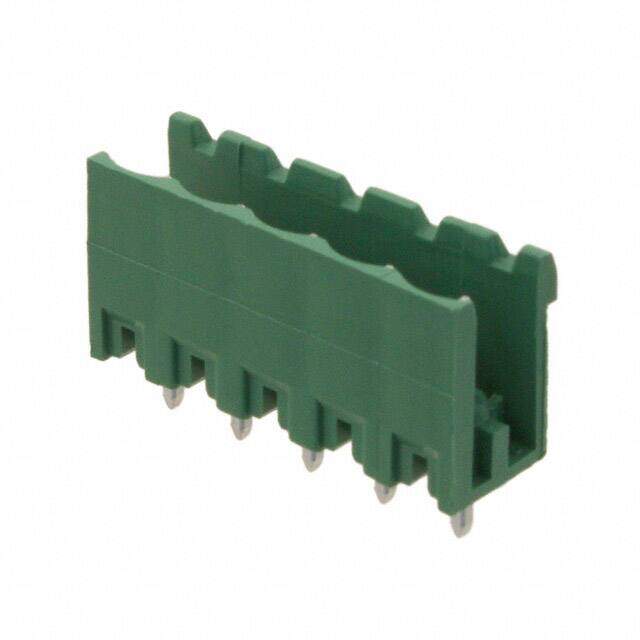

1758047 image
Favorite
1758047 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 5POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
≥10 USD $1.35696
≥100 USD $1.298176
≥500 USD $1.262712
≥1000 USD $1.18008
≥3000 USD $1.085674
Inventory: 495
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 153.999996g

Technical

Packaging Bulk
Published 2003
Series COMBICON MSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated DC 320V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 5
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 5
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation Vertical
Fastening Method CONNECTOR

Dimensions

Height 15.9mm
Length 25.4mm
Width 25.4mm
Thickness 20.32mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
