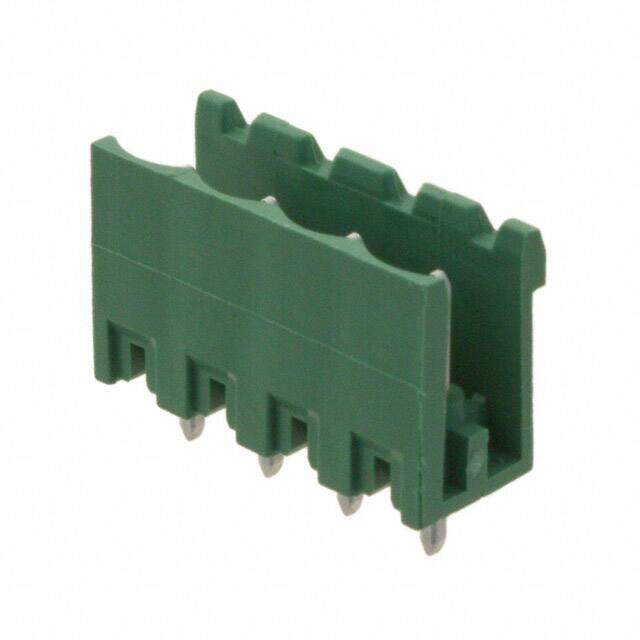

1758034 image
Favorite
1758034 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
Inventory: 1154
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 20.32mm
Length 20.32mm
Height 15.9mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 4
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 4
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 320V
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2005
Packaging Bulk

Physical

Weight 153.999996g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin

Supply Chain

Factory Lead Time 7 Weeks
