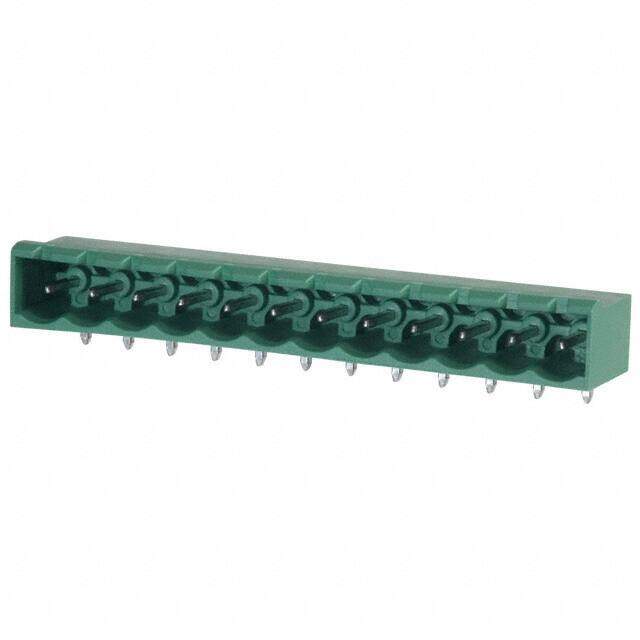

1757569
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1856
≥1 USD $3.1856
≥10 USD $3.102
≥100 USD $2.89872
≥500 USD $2.66684
≥1000 USD $2.616909
Inventory: 223
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 62mm
Length 62mm
Height 12.1mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 12
Number of Decks 1
Number of Poles 12
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated DC 400V
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBA
Published 2010
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
