1757556
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

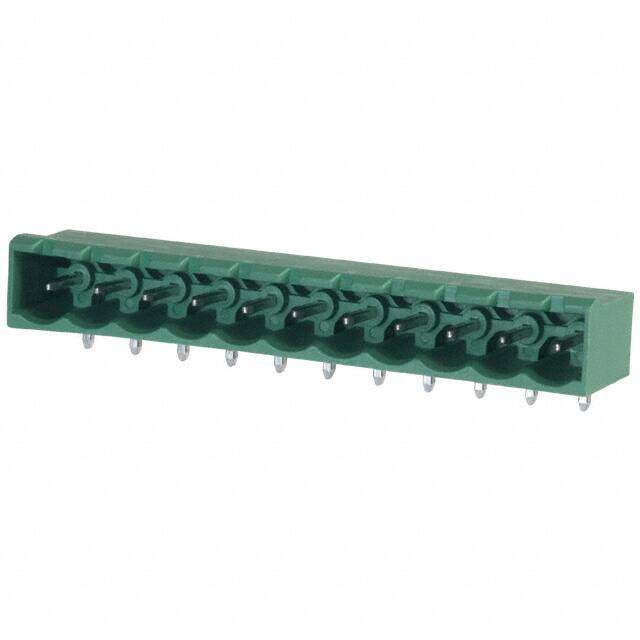

TERM BLOCK HDR 11POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.904
≥1 USD $2.904
≥10 USD $2.82216
≥100 USD $2.63736
≥500 USD $2.426336
≥1000 USD $2.380963
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.50003kg
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 400V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 11
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 11
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Length 57mm
Width 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
