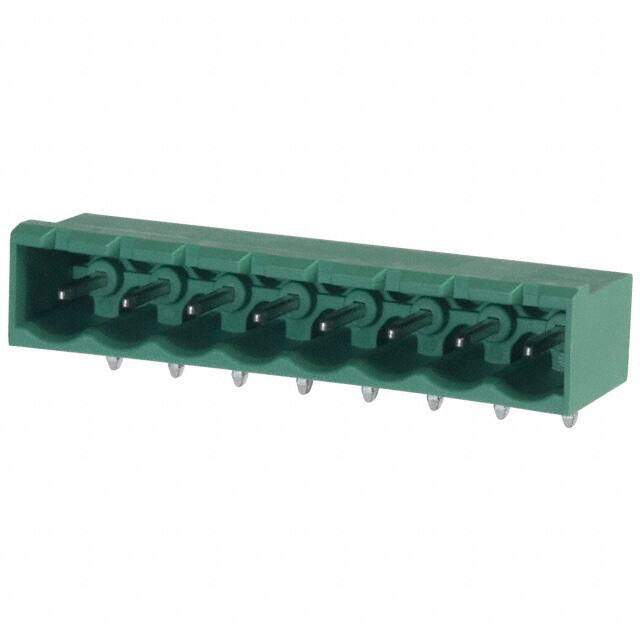

1757527
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 8POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.79256
≥1 USD $0.79256
≥10 USD $0.747702
≥100 USD $0.705376
≥500 USD $0.665451
≥1000 USD $0.627778
Inventory: 7802
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2005
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Green
Number of Rows 1
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.339 8.61mm
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Rated Voltage 250V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
