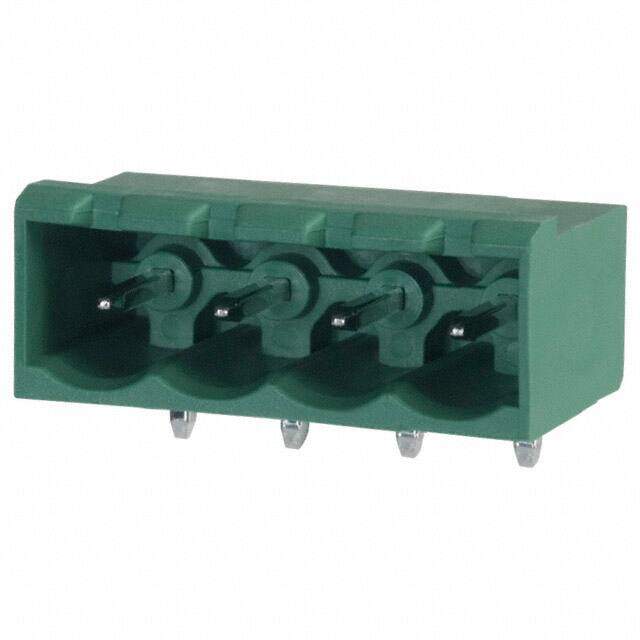

1757491
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $73.1
Unit Price: USD $0.6195
≥118 USD $0.6195
Inventory: 153
Minimum: 118
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.113003g
Technical
Packaging Bulk
Published 2005
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 320V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 4
Number of Decks 1
Voltage - IEC 400V
Number of Ways 4
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 8.75mm
Length 22mm
Width 22mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
