1757446
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

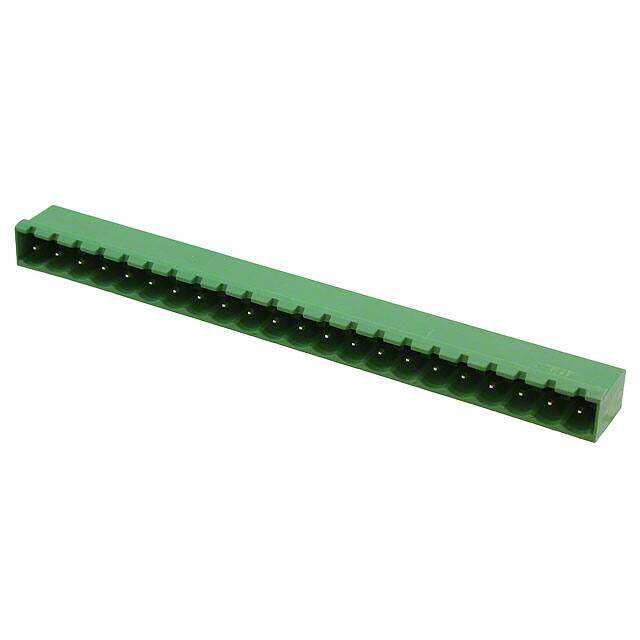

Pluggable Terminal Blocks 22 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.98
Unit Price: USD $6.978495
≥1 USD $6.978495
≥10 USD $6.583483
≥100 USD $6.210839
≥500 USD $5.859283
≥1000 USD $5.527624
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 152.999995g
Technical
Packaging Bulk
Published 2003
Series COMBICON MSTBA
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 22
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 22
Dimensions
Height 12.1mm
Length 12mm
Width 113.68mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
