1757310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

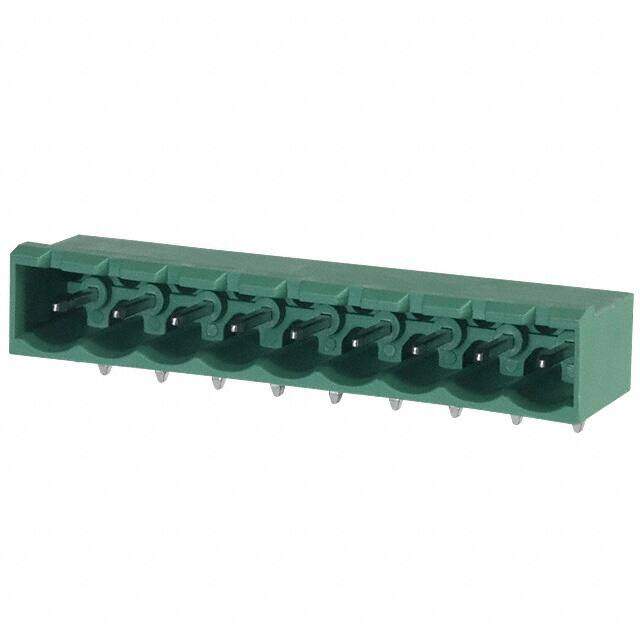

TERM BLOCK HDR 9POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $2.30032
≥100 USD $2.237312
≥500 USD $2.09088
≥1000 USD $1.92361
≥3000 USD $1.8876
Inventory: 2184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 152.999995g
Technical
Packaging Bulk
Published 2000
Series COMBICON MSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Color Green
Number of Rows 1
Gender Male
Voltage - Rated DC 250V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage - Rated AC 250V
Approval Agency CSA, EN, UL, VDE
Lead Pitch 5.08mm
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Poles 9
Number of Decks 1
Voltage - IEC 400V
Number of Ways 9
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 12.1mm
Length 47.72mm
Width 47.64mm
Thickness 40.64mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
