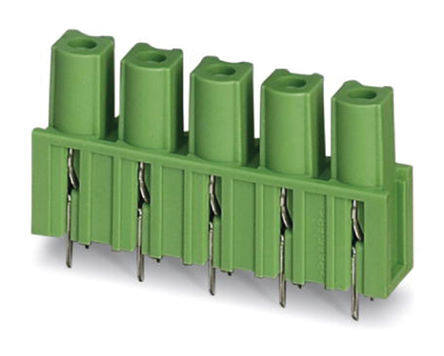

1756579
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 2054
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON GICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 630V
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.748 19.00mm
Current Rating 16A
Termination Style Solder
Voltage 250V
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 16A
Contact Mating Finish Tin
Voltage - UL 250V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 11
Header Orientation Vertical
Number of Positions Per Level 11
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
