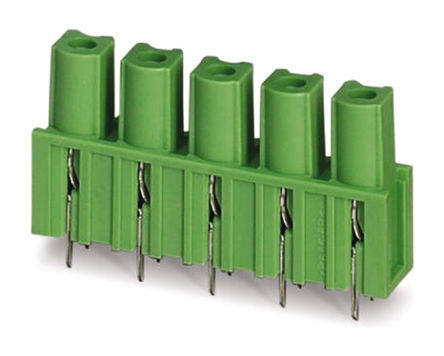

1756498
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.520465
≥1 USD $3.520465
≥10 USD $3.321192
≥100 USD $3.133202
≥500 USD $2.955849
≥1000 USD $2.78854
Inventory: 1195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON GICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 630V
Pitch 0.300 7.62mm
Depth 10.2mm
Insulation Height 0.748 19.00mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Max Current Rating 16A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 250V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 3
Header Orientation Vertical
Number of Positions Per Level 3
Dimensions
Length 22.86mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
