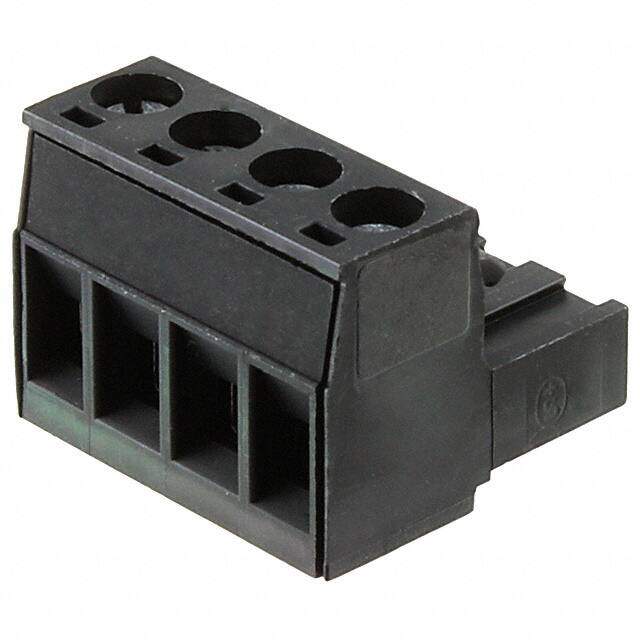

1756298
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 4 POS 5mm Screw RA Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.0448
≥1 USD $3.0448
≥10 USD $2.95768
≥100 USD $2.76408
≥500 USD $2.542936
≥1000 USD $2.495363
Inventory: 150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.999889kg
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Dimensions
Height 18.2mm
Length 15mm
Width 20mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
