1756243
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

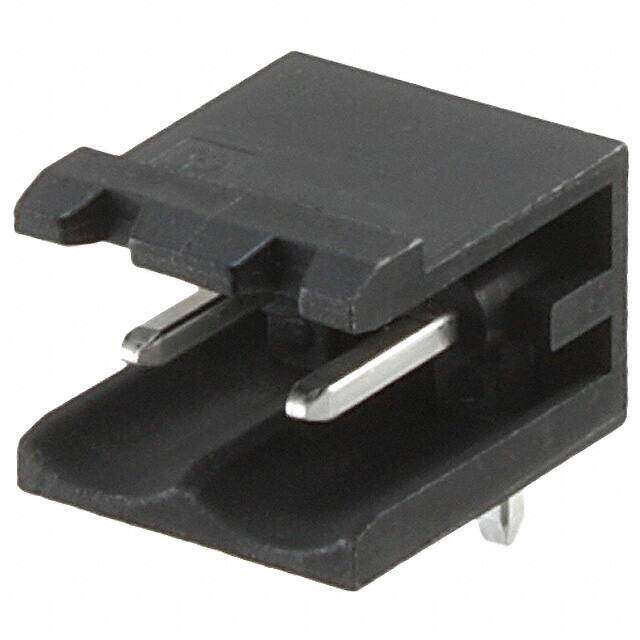

Pin enclosure - PCB MSTB Total number of pins 2 Phoenix Contact 1756243 Contact spacing: 5 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.51656
≥100 USD $0.48312
≥500 USD $0.444488
≥1000 USD $0.436163
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Weight 4.535924kg
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 2
Color Black
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Current - IEC 12A
Dimensions
Height 12.1mm
Length 12mm
Width 15.16mm
Compliance
RoHS Status RoHS Compliant
