1755868
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

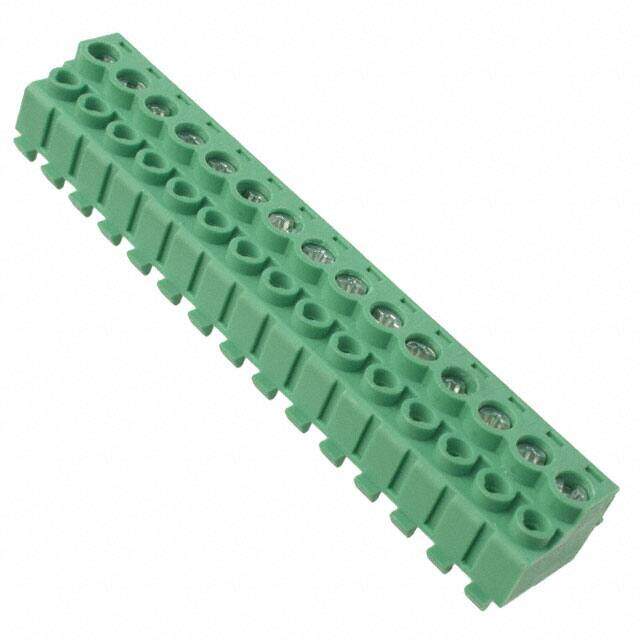

TERM BLOCK PLUG 15POS 90DEG 5MM
PDF
/
Inventory: 997
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 28 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Voltage 300V
Number of Contacts 15
Termination Style Screw - Rising Cage Clamp
Current Rating 10A
Reach Compliance Code not_compliant
Insulation Height 0.484 12.30mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Color Green
Type Plug for Unshrouded Header
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PT
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 20 Weeks
