1755862
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

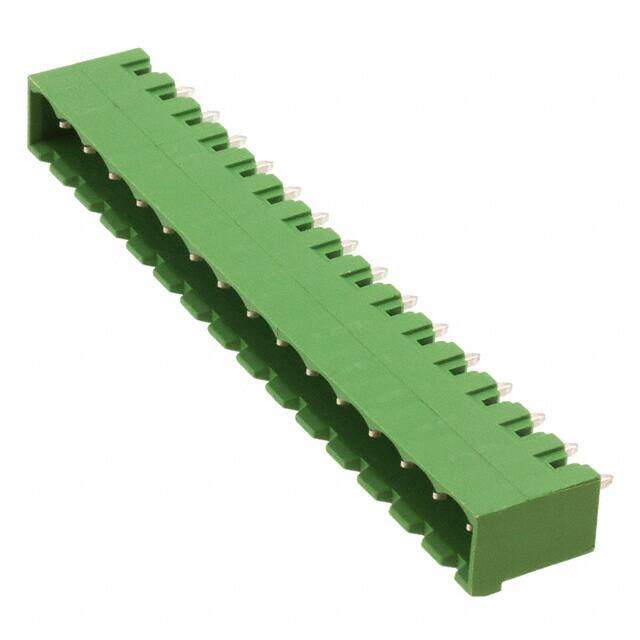

Pluggable Terminal Blocks 15 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.28
Unit Price: USD $4.2768
≥1 USD $4.2768
≥10 USD $4.16064
≥100 USD $3.88872
≥500 USD $3.57764
≥1000 USD $3.510637
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 154.999997g
Technical
Packaging Bulk
Published 2003
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V-0, SAFETY APPROVAL VDE
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 15
Safety Approval CCA; CB; CSA; CUL; GOST; UL
Header Orientation Vertical
Number of Positions Per Level 15
Fastening Method CONNECTOR
Dimensions
Height 15.9mm
Length 78.2mm
Width 78.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
