1755846
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

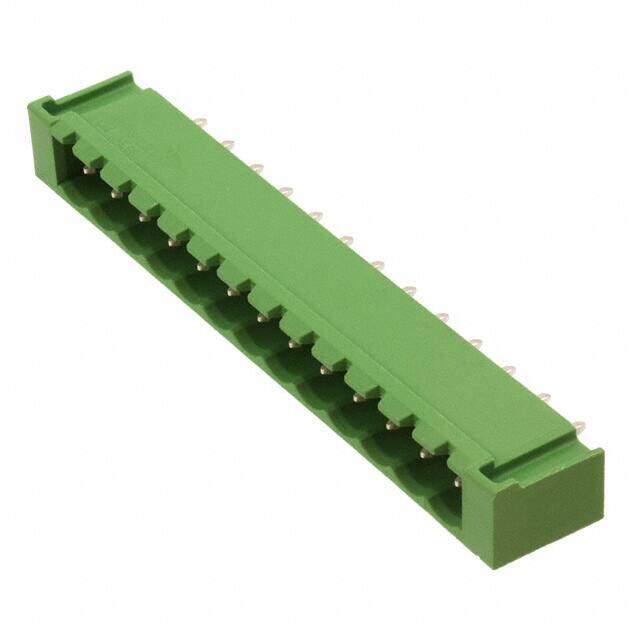

Conn Shrouded Header HDR 13 POS 5.08mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $3.71
Unit Price: USD $3.7136
≥1 USD $3.7136
≥10 USD $3.60976
≥100 USD $3.37392
≥500 USD $3.104024
≥1000 USD $3.045926
Inventory: 308
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 68.04mm
Length 68.04mm
Height 15.9mm
Technical
Number of Positions Per Level 13
Header Orientation Vertical
Safety Approval UL
Number of Ways 13
Voltage - IEC 630V
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2010
Packaging Bulk
Physical
Weight 154.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
