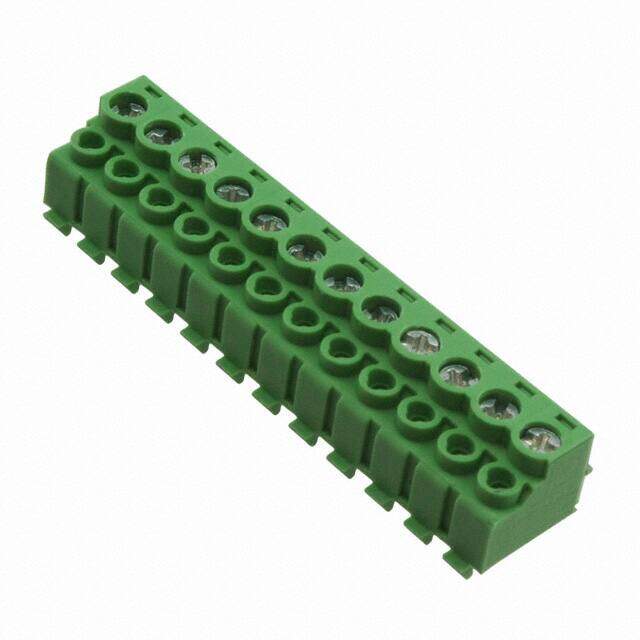

1755839 image
Favorite
1755839 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 12POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.453007
≥1 USD $2.453007
≥10 USD $2.314155
≥100 USD $2.183166
≥500 USD $2.059591
≥1000 USD $1.943006
Inventory: 1082
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Voltage 300V
Number of Contacts 12
Termination Style Screw - Rising Cage Clamp
Current Rating 10A
Reach Compliance Code not_compliant
Insulation Height 0.484 12.30mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Gender Female
Color Green
Type Plug for Unshrouded Header
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PT
Published 2010
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 17 Weeks
