1755820
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

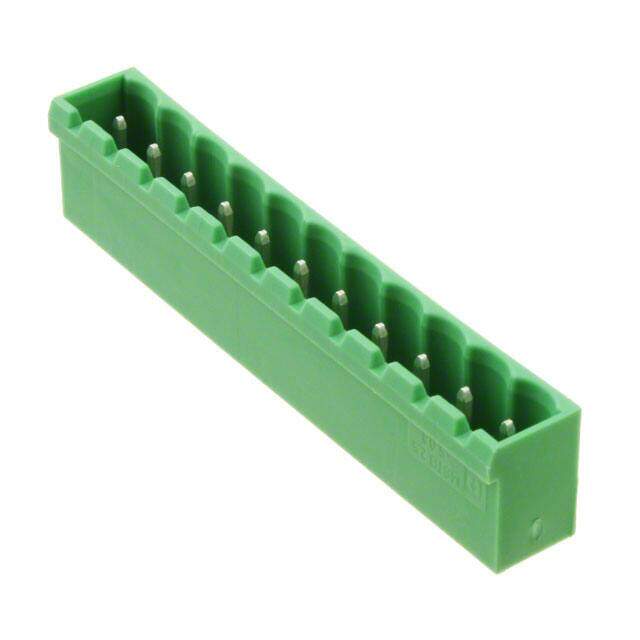

TERM BLOCK HDR 11POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.34
Unit Price: USD $2.3408
≥1 USD $2.3408
Inventory: 1108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 154.999997g
Technical
Packaging Bulk
Published 2000
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, UL 94 V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 250V
Pitch 0.200 5.08mm
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 11
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 630V
Number of Ways 11
Safety Approval UL; VDE; CSA
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 12.16mm
Width 57.88mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
