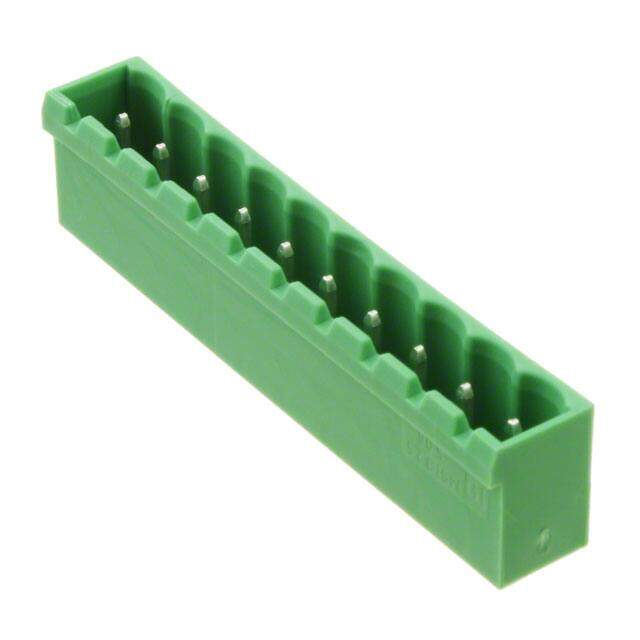

1755817
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0944
≥1 USD $2.0944
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 52.8mm
Length 52.8mm
Height 15.9mm
Technical
Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 10
Voltage - IEC 630V
Number of Decks 1
Number of Poles 10
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Lead Pitch 5.08mm
Approval Agency CSA, UL
Voltage - Rated AC 250V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 250V
HTS Code 8536.69.40.40
Additional Feature UL 94V-0, PA, SAFETY APPROVAL: VDE
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2005
Packaging Bulk
Physical
Weight 154.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
