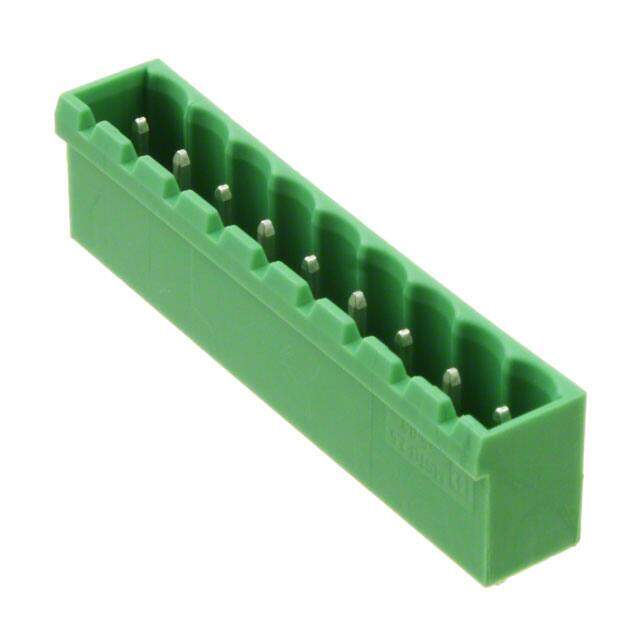

1755804 image
Favorite
1755804 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 9POS VERT 5.08MM
PDF
/
Inventory: 9637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 47.72mm
Length 47.72mm
Height 15.9mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CCA; CB; CSA; CUL; GOST; UL
Number of Ways 9
Voltage - IEC 630V
Number of Decks 1
Number of Poles 9
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Lead Pitch 5.08mm
Approval Agency CSA, UL
Voltage - Rated AC 250V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated DC 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2000
Packaging Bulk

Physical

Weight 154.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
