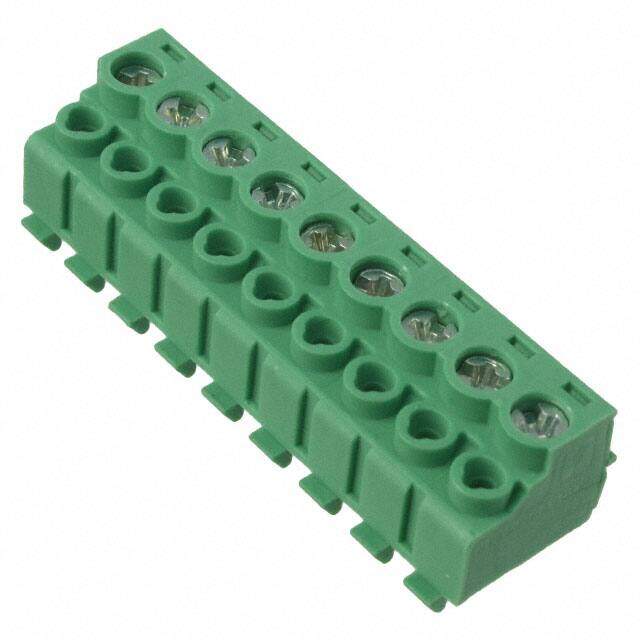

1755800
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 9POS 90DEG 5MM
PDF
/
Inventory: 5084
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2010
Series COMBICON PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug for Unshrouded Header
Color Green
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.484 12.30mm
Reach Compliance Code not_compliant
Current Rating 10A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 9
Voltage 300V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 630V
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
