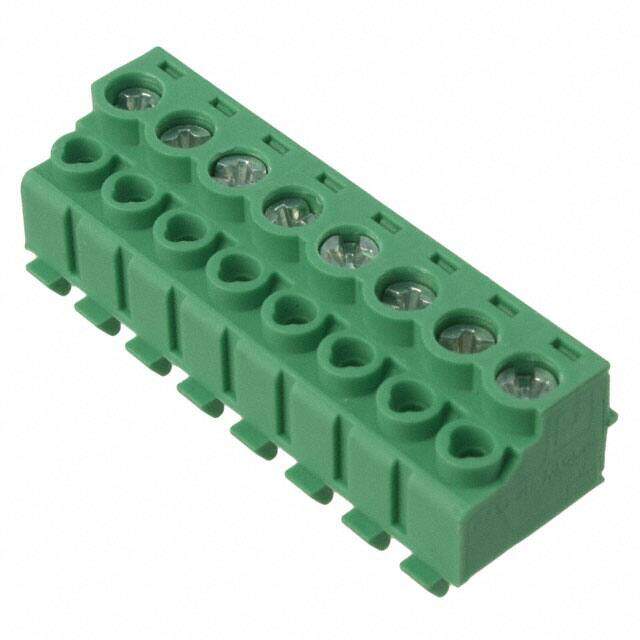

1755790
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 8POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.73448
≥1 USD $1.73448
Inventory: 246
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Max Current Rating 8A
Number of Circuits 15
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 10A
Reach Compliance Code not_compliant
Insulation Height 0.484 12.30mm
Orientation Straight
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Green
Number of Positions 8
Type Plug for Unshrouded Header
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PT
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
