1755752
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

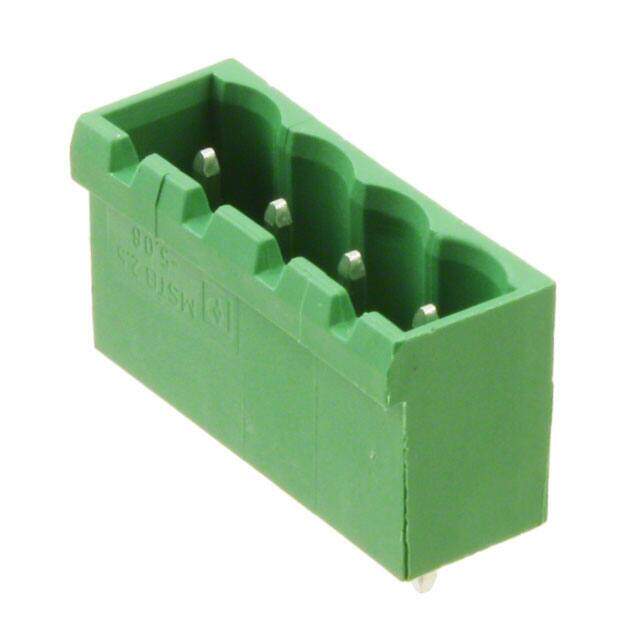

TERM BLOCK HDR 4POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $1.07448
≥100 USD $1.028016
≥500 USD $0.999944
≥1000 USD $0.93456
≥3000 USD $0.859795
Inventory: 42969
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 154.999997g
Technical
Packaging Bulk
Published 2001
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Male
Voltage - Rated DC 250V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage - Rated AC 250V
Approval Agency CB, CSA, UL, VDE, cULus
Lead Pitch 5.08mm
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 4
Number of Decks 1
Voltage - IEC 630V
Number of Ways 4
Safety Approval CB; CSA; CUL; EAC; EN; UL; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 12.15mm
Length 22.32mm
Width 22.32mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
