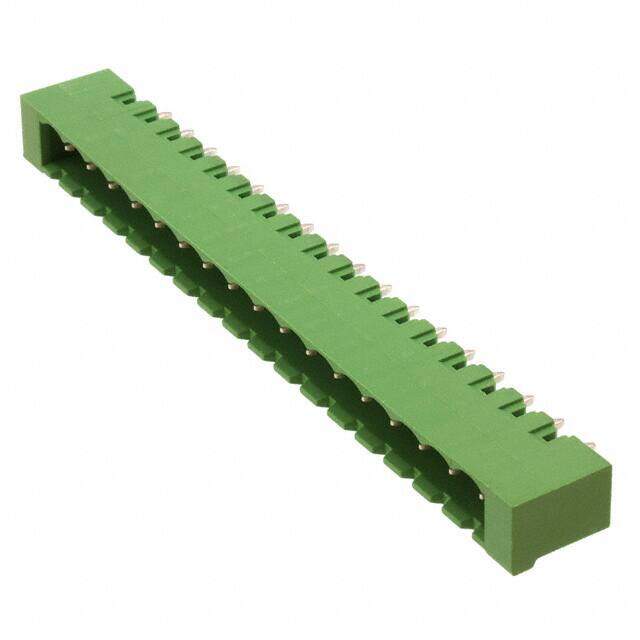

1755655 image
Favorite
1755655 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 17POS VERT 5MM
PDF
/
Buying Options
Total Price: USD $5.05
Unit Price: USD $5.0512
≥1 USD $5.0512
≥10 USD $4.9148
≥100 USD $4.5936
≥500 USD $4.226112
≥1000 USD $4.146982
Inventory: 86
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 87mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 17
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Number of Positions 17
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2010
Packaging Bulk

Physical

Weight 907.18474g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
