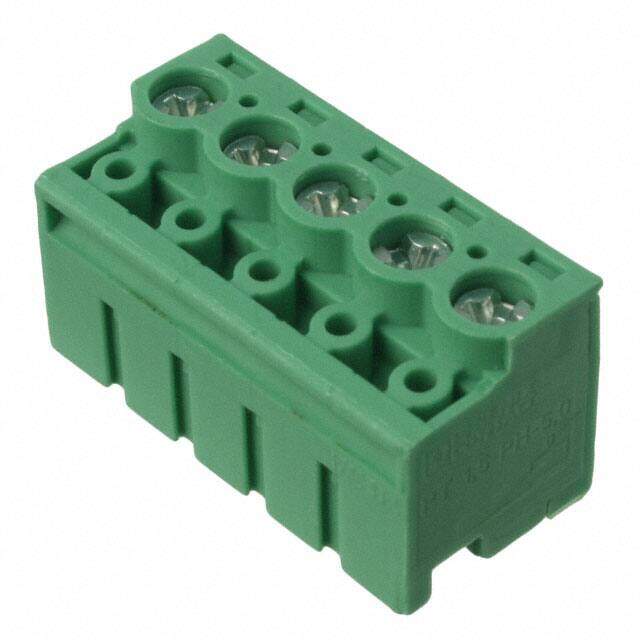

1755619
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 5POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
Inventory: 274
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2010
Series COMBICON PT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug for Unshrouded Header
Color Green
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.518 13.15mm
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 630V
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 6mm
Dimensions
Height 13.15mm
Length 12.2mm
Width 25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
