1755596
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

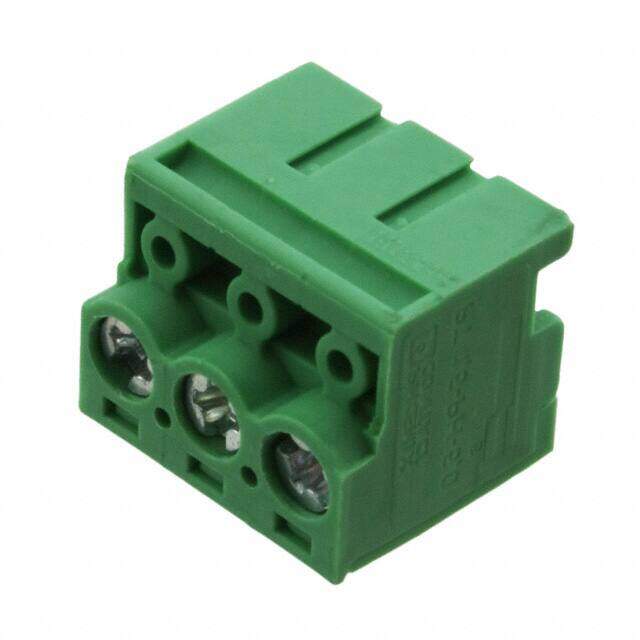

TERM BLOCK PLUG 3POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.84744
≥100 USD $0.810304
≥500 USD $0.788128
≥1000 USD $0.73656
≥3000 USD $0.677635
Inventory: 4857
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 15mm
Length 12.2mm
Height 13.15mm
Technical
Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-28 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 28 AWG
Current 10A
Number of Levels 1
Max Current Rating 10A
Voltage 300V
Number of Contacts 3
Termination Style Screw - Rising Cage Clamp
Current Rating 10A
Reach Compliance Code unknown
Insulation Height 0.518 13.15mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Color Green
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
